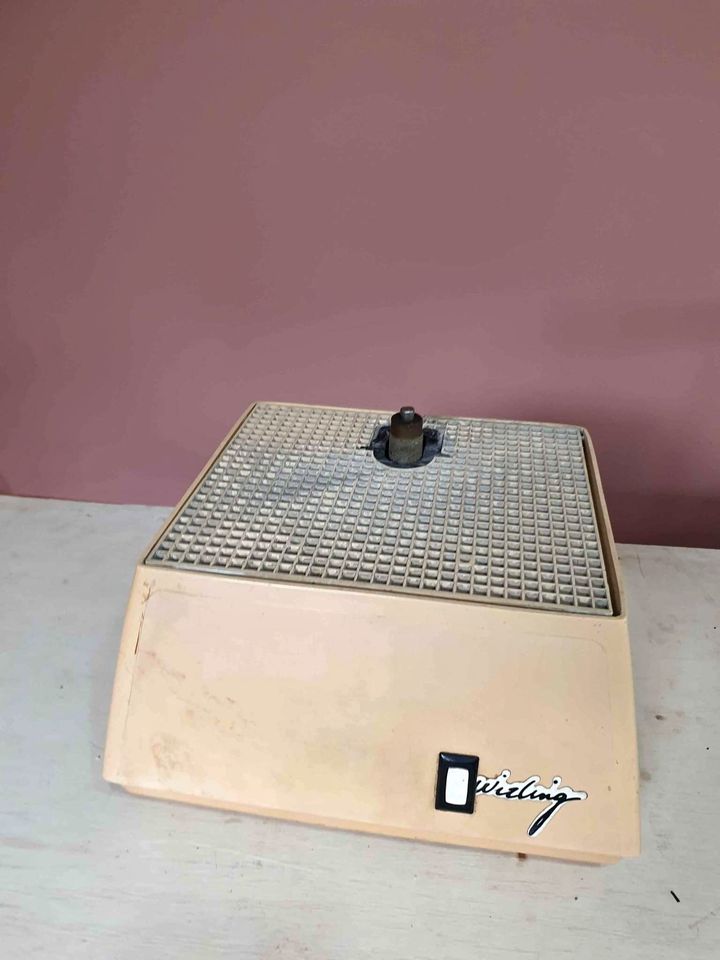

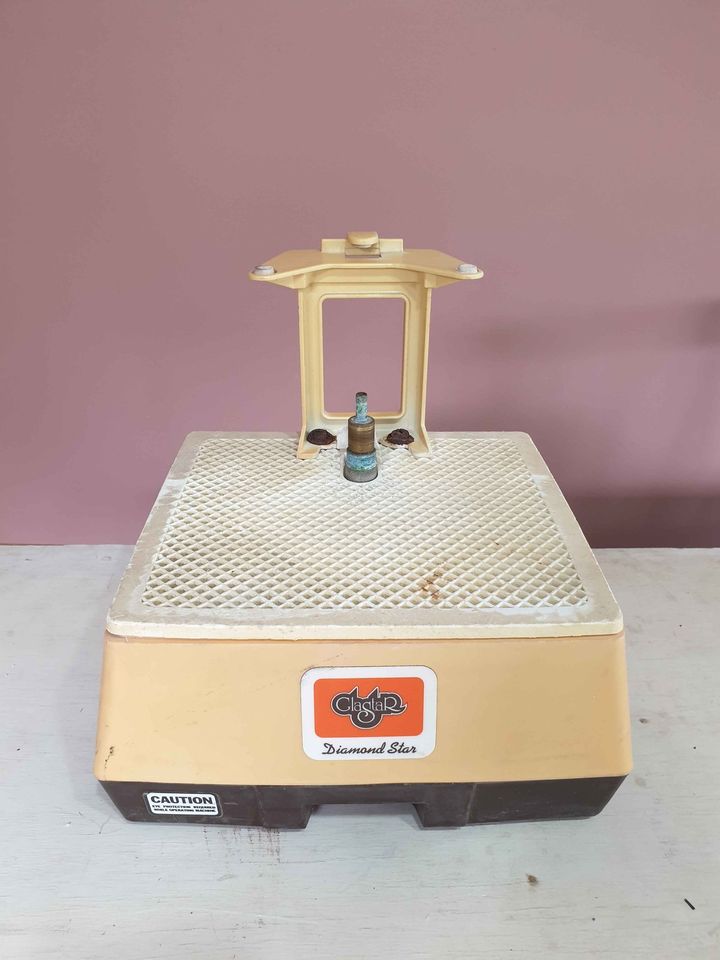

Glass Grinders: Wizling & Glastar

Aliases “Lapidary grinder” “Gem grinder”
Other References
Official Maintainer Kyia Bourne

Working

This machine does not require induction to use.

Never run diamond grinder bits dry. Diamond grinder bits are designed to be used with a lubricant, such as water, and will be ruined immediately if used dry. Always make sure you are using adequate water while grinding so that the material’s dust doesn’t form. This dust contains chemicals that can be hazardous to your lungs if inhaled and is known to cause cancer, birth defects or other reproductive harm. To reduce your exposure to these chemicals, work in a well ventilated area and wear a face or dust mask. Never grind more than one workpiece at a time. Some materials contain poisonous elements. Avoid grinding materials that contain uranium, mercury, lead, arsenic, etc. Make sure you know the material you are grinding.

Grinding Turn on the machine and start grinding a piece of scrap glass to get a ‘feel’ for the grinding action. Begin by pushing the glass into the grinding bit using light pressure and moving the glass back and forth across the bit. Slowly increase the pressure until you feel comfortable with the grinding speed and your control. You’ll quickly learn the optimum grinding pressure for the types of glass you use. When grinding out deep cuts, use intermittent pressure to allow coolant to rinse ground glass from the head. If you ever have a white paste form on the bit, it is not getting enough coolant. Stop, turn off the machine, and check the sponge placement and coolant level. Grinding without coolant greatly reduces the life of your grinding heads. As the diamond surface wears, you will feel it grind less effectively. When this happens, it is time to expose a new portion of the diamond surface. Loosen the set screw using the included Allen wrench and move the grinding head up on the shaft to expose a new 1/8“ section of diamond. Secure the bit back in place making sure to tighten the set screw against the flat side of the motor shaft. Reposition the sponge if needed. You have up to 5, 1/8” sections of exposed diamond on a standard grinding bit to use before you need to consider replacing the entire head.

How to drill a hole in glass The WizCG comes with a 1/4“ grinding/ drilling bit. It is not included with the WizlingCG. This 1/4” grinder bit is useful for drilling holes and intricate grinding. The 1/4“ bit is placed onto the motor shaft and sits on top of the 3/4” grinder bit. Loosen the set screw with the included Allen wrench, then slide the bit onto the shaft, securing the set screw to the flat side of the motor shaft. You need to supply the coolant to the 1/4“ bit while drilling by using the other included sponge soaked in coolant. Begin drilling the hole by holding the front surface of the glass against the upper edge of the bit at about a 45° angle, while holding the coolant soaked sponge against the bit and glass (Fig. D). You will want to use two hands. Slowly move the glass down onto the bit in a horizontal position. Continue to work the glass down and around the top of the bit in a circular motion, making sure to keep the glass and diamond wet at all times. You may need to stop and soak the sponge with coolant several times. Reduce pressure as you begin to see the bit come through the back of the glassto avoid chipping. Practice before you drill your final project.

Required Please wear goggles or a face shield
Required We recommend the use of a respirator
Required Enclosed shoes are required, no open sandals, thongs etc
Warning Gloves are PPE against your material (splinters, resin etc) but are hazardous around the saw. Please carefully evaluate your use of gloves
Maintenance Disconnect power to the grinder before performing maintenance, including grinder changes
Name Value
Brand‎Inland Craft
Material‎Plastic
Item DimensionsLxWxH ‎10 x 5.5 x 11 inches
StyleAngled
Power Source‎Corded Electric
Color‎White,black
Voltage‎115 Volts
Wattage‎215 watts
Maximum Rotational Speed‎6600 RPM
Horsepower‎0.09 hp
Item Weight8.8 pounds
Product Dimensions‎10 x 5.5 x 11 inches
Date Description Workaround Proposed Remediation
04/06/2023 Fiddly power plug When plugged in will sometimes appear to not work work giggle the power plug and shift its position marginally this will usually fix the problem. do this with it turned off at the wall between adjustments.
Date Modified By Description Remediation Cost
04/06/2023 Installed portable sheild Created shield to prevent glass flying everywhere out of corflute and acrylic Place shield around Grinder while in use. there is also three sizes and designs available to choose from $10 for corflute.
Image Category Accessory Name & Notes Location Buy from

Image Category Accessory Name & Notes Location Buy from
Interval Task
Whenever you swap Grinder Bit Apply Inland Craft motor shaft lubricant (not included) or a small amount of Vaseline to the motor shaft whenever you change or remove the grinding bits. Remove the bit if you won’t be using the grinder for more than a week.
Per use or every 4 hours Remove and clean the reservoir every four hours of use, more often if grinding heavily. Remove the water reservoir by first removing any grinding bits. Lift off the work surface, then lift the reservoir tray off the grinder housing. Scrape the glass sludge into the trash and rinse clean. Reassemble, referring to the assembly section on page 7 of manual.
Annually or as needed The work surface is reversible. When one side becomes worn, simply flip it over. Replacement work surfaces are available online.
Weekly Periodically rinse out the coolant sponge to remove any accumulated grinding residue. Squeeze several times while holding the sponge under running water to rinse and clean it. When the sponge becomes worn, replace it.
After every use Water and glass slurry may slop over the sides of the grinder and onto the switch. Wet hands handling the switch will also get glass slurry into the switch. Over time, this glass slurry builds up in the switch contacts. Because colored glass contains metal oxides, when significant quantities are there, the dried glass dust will make a live connection across the switch contacts.

Check out our YouTube channel for WizCG and WizlingCG grinder maintenance videos and usage tutorials at youtube.com/ICPVids

Task / Action Executive Cause Leader
Cause Team
Named Maintainer Trainers Cause Membership Implementer
Modification and Repairs - AC C I I I R
Induction changes C RACI RC I I I R

Ref / ID Pre-Mitigation Mitigations / Warnings / Remedies Post Mitigation
Risk Risk Severity Risk Likelyhood Risk Level Risk Severity Risk Likelyhood Risk Level Acceptable to Proceed
0001 PLACEHOLDER DEATH Intolerable Probable 11 PLACEHOLDER Induction to train users in correct usage Low Improbable 1
Ref / ID Decision Details Impact Proposed Date Proposed By Status Approved By Date Resulting Actions and Comments
0000 Example decision Provides an example 08/08/20 JH Approved JH 08/08/20 A line was put in the register
